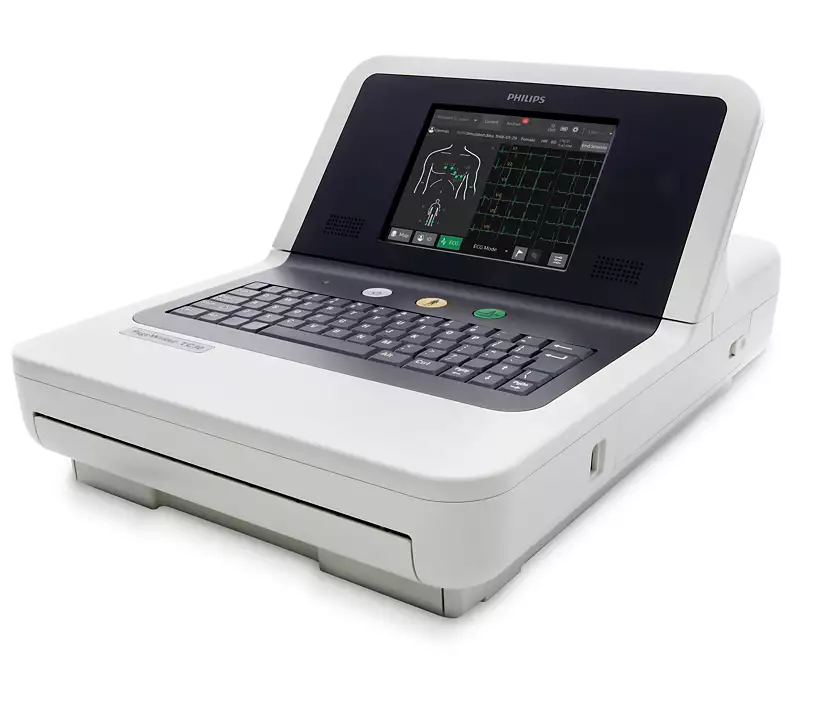

PageWriter TC35 Cardiograph with DICOM
PageWriter TC35
Cardiograph
The PageWriter TC35 cardiograph provides advanced tools to enhance workflow and support clinical decisions. All PageWriter cardiographs include the clinical excellence of the DXL ECG Algorithm which is built upon over 55 years of research and experience. The cardiographs provide continuity and consistency in ECG reading and diagnosis through PageWriter cardiographs, the IntelliSpace ECG management system, and other Philips solutions throughout the healthcare enterprise. Native DICOM modality worklists can be downloaded, or ADT information retrieved, providing patient demographics at the bedside. ECG reports can be wirelessly exported using 802.11 b/a/g/n/ac WiFi 5 speed and WPA3 (Personal) security to an electronic medical record. PageWriter’s native DICOM interoperability provides direct access to ECG orders from your current DICOM MWL provider and storage of resulting DICOM format ECGs to your existing PACS. The result – a fast, efficient clinical workflow with reliable operation for you and your patients.
| PageWriter TC35 with DICOM | |||
| PN | Description | Qty | Remarks |
| 860437 | PageWriter TC35 Cardiograph | 1 | N/A |
| 860437_A02 | A02 TC35 Cardiograph Only | 1 | |
| 860437_D01 | D01 Order Creation/Receipt | 1 | |
| 860437_D02 | D02 ADT Support | 1 | |
| 860437_D03 | D03 Interpretive Algorithm | 1 | |
| 860437_D05 | D05 Full Disclose Timeline | 1 | |
| 860437_D06 | D06 Additional Archive | 1 | |
| 860437_D08 | D08 DICOM Connectivity | 1 | |
| 860437_H23 | H23 Long Leadwires | 1 | |
| 860437_E04 | E04 Welsh Bulb Adaptors | 1 | |
| 860309 | Trolley, PageWriter TC30/TC50 | 1 | |
| 860309_B01 | B01 Partially Assy Trolley | 1 | |
| 860309_C02 | C02 Add Cart Bin | 1 | |
| 860309_C03 | C03 Add Patient Cable Arm | 1 | |
